Eliminator Lighting Mega Bar RGBA EP, 42″ Indoor RGBA LED Linear Fixture Online

Description

Eliminator Lighting Mega Bar RGBA EP, 42″ Indoor RGBA LED Linear Fixture

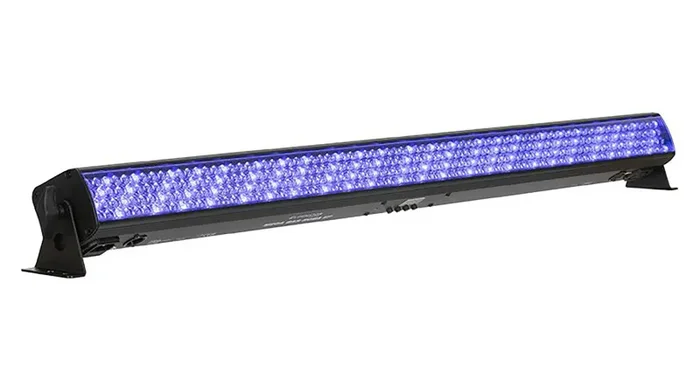

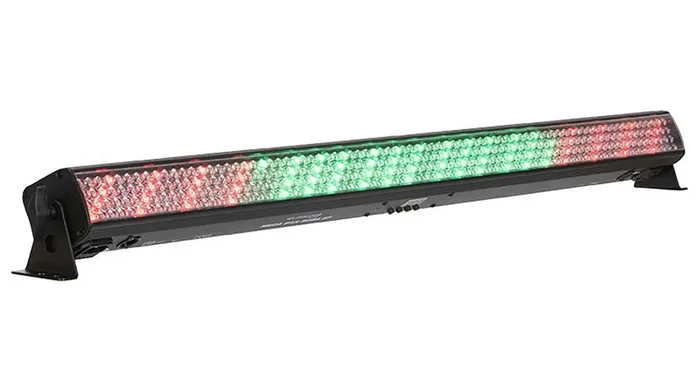

The Eliminator Mega Bar RGBA EP is a compact, 42” linear bar fixture that offers the flexibility of RGBA (red, green, blue, and amber) color mixing for your club, bar, or mobile DJ setup. The fixture has a total of 320 LEDs, with 64 red, 96 green, 96 blue, and 64 amber diodes. The fixture can be used in stand alone mode or connected in a primary/secondary configuration.

There are six operating modes, including Sound Active mode, Auto mode, RGB mode, Static Color mode, and DMX control mode (4, 6, 7, 9, 10, 18, and 34 channels). Use the 48 built-in color macros for quick and easy programming. The enclosure includes mounting brackets which double as a floor stand. The rear panel includes the LCD menu, 3-pin DMX, and power I/O for connecting up to 20 units, while magnetic end caps ensure the precise alignment of multiple bars. The Mega Bar RGBA EP is compatible with the ADJ RFC wireless remote control (sold separately). A power cord is included.

Product Specifications:

Fixture Type: Linear/Bar Light

Light Source: 320x Color LED

Colors: Amber, Blue, Green, Red

Beam Angle: 30°

Control Protocols: DMX512

AC Input Power: 100 to 240 VAC, 50/60 Hz

Power / Current Consumption: 32 W (Max)

Mounting: Floor Base, Mounting Bracket

Fixture Type: Linear/Bar Light

Light Source: 320x Color LED

Expected Lamp Life: 50,000 Hours

Colors: Amber, Blue, Green, Red

Photometrics: 30°:

60 fc / 650 Lux at 6.56′ / 2 m

25 fc / 275 Lux at 13.1′ / 4 m

Beam Angle: 30°

Shutter / Strobe: Electronic

Dimming: Electronic, 0 to 100%

Operating Modes: Automatic, Color Change, DMX, Sound-Active

Macros / Programs: 48x Color Macro

Effects: Strobe

Gobos: No

Refresh Rate: 410 Hz

Control Protocols: DMX512

DMX Channel Modes: 7 Mode(s):

4 / 6 / 7 / 9 / 10 / 18 / 34-Channel

Display / Controls: LED / 4-Button

Remote Control: RF Remote (with Optional Equipment)

Mobile App Compatible: No

Inputs/Outputs: 1 x XLR 3-Pin DMX Input

1 x XLR 3-Pin DMX Output

Wireless: No

AC Input Power: 100 to 240 VAC, 50/60 Hz

AC Power Connector: Input: 1x IEC

Output: 1x IEC

Fuse: 2 A 250 V

Power / Current Consumption: 32 W (Max)

Power Linking: 20 Units

Environmental Protection: No

Mounting: Floor Base, Mounting Bracket

Included Accessories: 1x Power Cable

Exterior Color: Black

Dimensions: 41.75 x 5.75 x 3″ / 106.05 x 14.61 x 7.6 cm

Weight: 6 lb / 2.7 kg
