Elation Fuze Par Z120 IP, RGBW LED Par with Zoom – 120 Watt
The Elation Fuze Par Z120 IP, RGBW LED Par with Zoom – 120 Watt is a single source par luminaire with a 120W Quad Color RGBW COB LED. Features 7° to 55° motorized zoom, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, IP rated 5pin XLR and IP65 Locking Power Cable in/out connections, LCD menu display with 4 touch button control panel, dual adjustable yokes, multiple unit power linking, flicker free operation for TV and FILM, a multi-voltage universal auto switching power supply (110-240v), and removable gel frame and barn doors included.
Product Specifications:
Source:
120W RGBW COB LED
100,000 Hour Average LED Life
May vary depending on several factors including but not limited to
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometric Data:
9,112 LUX 847 FC @9.8’ (3m) (7° Full ON)
428 LUX 40 FC @9.8’ (3m) (55° Full ON)
Color: RGBW
Effects:
RGBW Color Mixing
7° – 55° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
Control / Connections:
12 DMX Channel Modes (13 Total Channels)

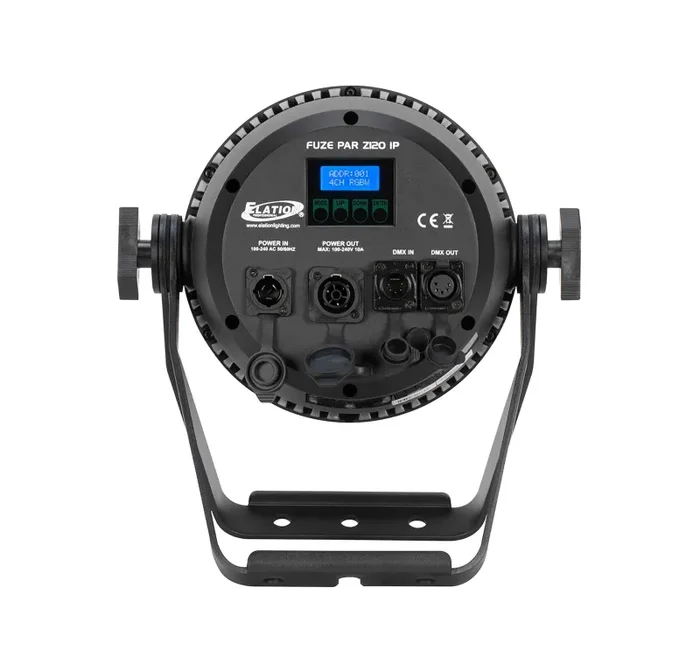

4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5pin DMX and IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
Size / Weight:
Length: 11.69″ (283.7mm)
Width: 14.05″ (356.8mm)
Vertical Height: 14.14″ (359.2mm)
Weight: 19 lbs. (8.6 kg)
Electrical / Thermal:
AC 110-240V – 50/60Hz
158W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
Approvals / Ratings: CE | cETLus | IP65
