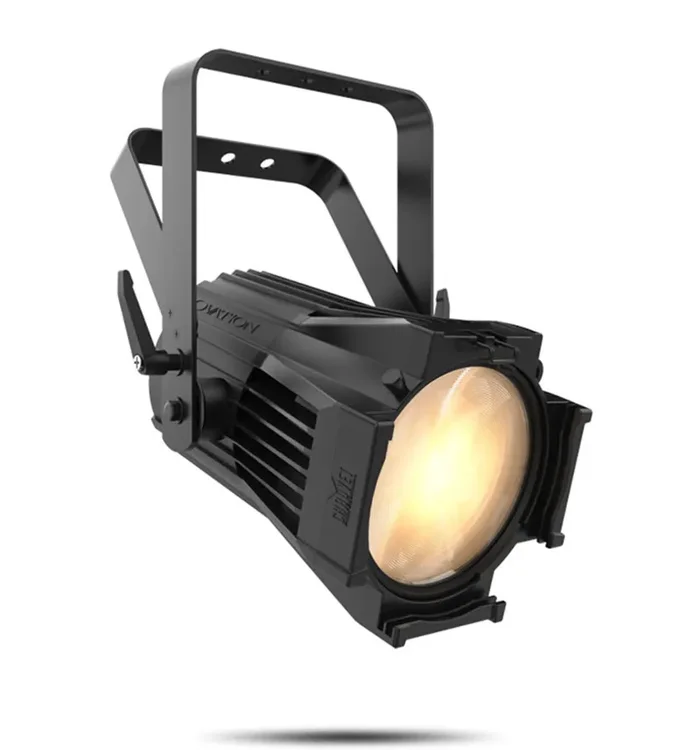

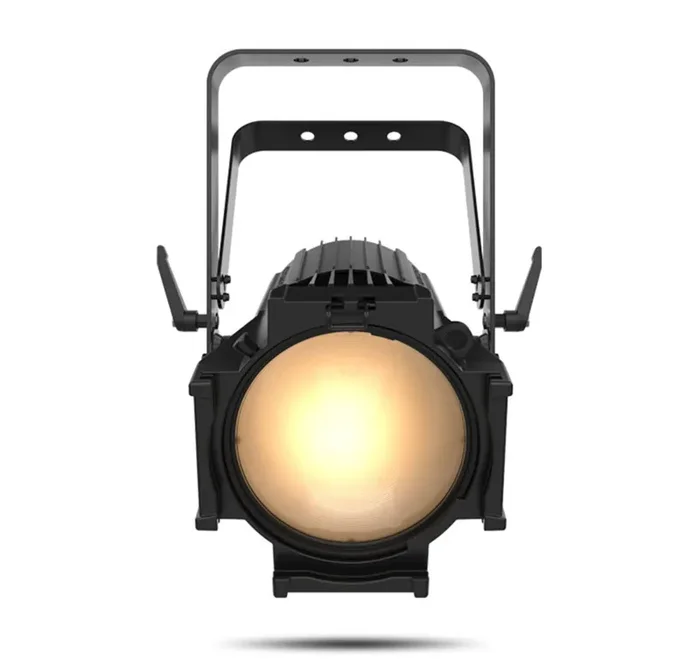

Chauvet Pro Ovation P-56WW, Compact Silent WW PAR Light – Warm White

Description

Chauvet Pro Ovation P-56WW, Compact Silent WW PAR Light – Warm White

The Chauvet Pro OVATIONP56WW, Compact Silent WW PAR Light – Warm White is a bright, compact, and virtually silent par with exceptionally high CRI that is ideal for theatrical and studio applications. The sleek, modern-style par produces a homogenized, single-source, flat and even field of light with the same efficient warm white LED system found in the award-winning Ovation E-260WW ellipsoidal. Interchangeable lens plates are included for narrow, medium and wide beam angles. The virtually silent par also features extremely smooth 16-bit dimming, as well as RDM and PWM for set-up ease. The unit accepts standard 7.5” beam shaping accessories.

.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}

Product Specifications:

Optical

Light Source: 1 LEDs (WW) 230 W, (3.2 A), 3228 K, 50,000 hours life expectancy

Color Temperature (at full): 3228 K

CRI: 97.9

Beam Angle (Narrow lens): 11.8°

Beam Angle (Medium lens): 23.9°

Beam Angle (Wide lens): 70.9°

Field Angle (Narrow lens): 26.6°

Field Angle (Medium lens): 40°

Field Angle (Wide lens): 106°

Field Angle (Wide lens w/egg crate): 68°

Lumens (w/Narrow lens): 10,326

Lumens (w/Medium lens): 10,728

Lumens (w/Wide lens): 10,687

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 29 Hz

Dim Modes: 4

Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)

Weight: 11.6 lb (5.3 kg)

Exterior Color: Black

Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

Connections

Power Connection: Edison (Local) plug to Neutrik powerCON

Data Connectors: 3- and 5-pin XLR

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM

DMX Channels: 1, 2, 3 or 6

Modes/Personalities: 4 personalities (1, 2, 3, 6)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 210 W, 2.278 A @ 100 V, 60 Hz

Power and Current: 205 W, 1.806 A @ 120 V, 60 Hz

Power and Current: 197 W, 1.023 A @ 208 V, 60 Hz

Power and Current: 195 W, 0.916 A @ 230 V, 50 Hz

Power and Current: 194 W, 0.886 A @ 240 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC

IP Rating: IP20, dry location

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included

Ovation P-56WW

Neutrik powerCON power cord

Gel Frame holder (7.5 in/191 mm accessories)

Wide, medium and narrow lenses

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN

Neutrik powerCON cables

3-pin or 5-pin DMX Cables

Color Blending Filters: DF60X1D, DF20D

Ovation F 7.5″ Barndoor

Ovation 60deg, 7.5” Honeycomb
