Chauvet Pro Ovation P-56FC Compact Silent Full Color PAR Light – RGBA+Lime

Description

Chauvet Pro Ovation P-56FC Compact Silent Full Color PAR Light – RGBA+Lime

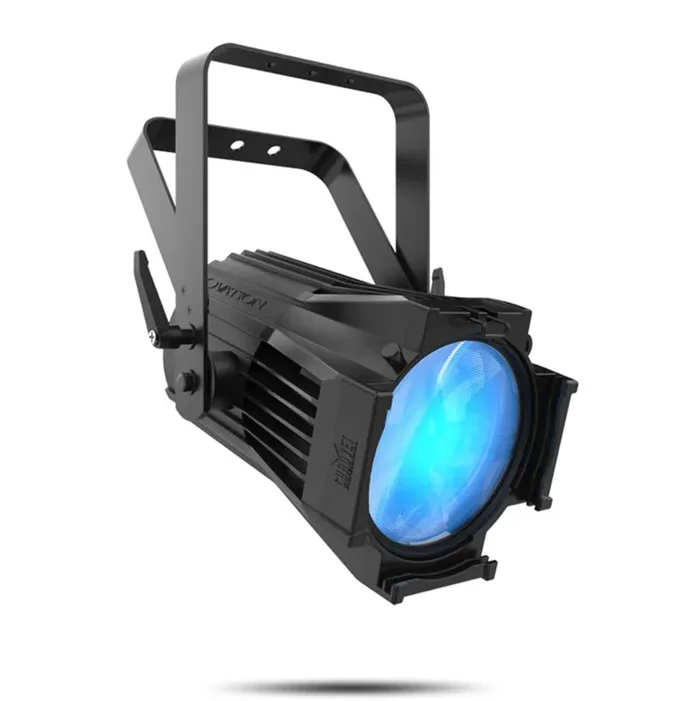

The Chauvet Pro Ovation P-56FC Compact Silent Full Color PAR Light – RGBA+Lime is a compact, virtually silent par that produces a homogenized, single-source, flat and even field of light with high CRI. The bright unit utilizes the same advanced full color-mixing RGBAL LED system found in the popular Ovation E-910FC ellipsoidal to produce subtle pastels to punchy saturates and nearly any temperature of white. Interchangeable lens plates are included for medium and wide beam angles and the unit accepts standard 7.5” beam shaping accessories. Ideal for theatrical and studio applications, the virtually silent par features extremely smooth 16-bit dimming, as well as RDM and PWM for ease of set-up.

.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}

Product Specifications:

Optical

Light Source: 48 LEDs (10 red, 10 green, 8 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy

Color Temperature (range): 2800 to 6500 K

Color Temperature (at full): 4889 K

CRI (3200): 90

Beam Angle (Medium Lens): 24°

Beam Angle (Wide Lens): 73°

Field Angle (Medium Lens): 41°

Field Angle (Wide Lens): 105°

Lumens (Medium Lens): 5,436

Lumens (Wide Lens): 5,216

Illuminance (Medium Lens): 1,250 lux @ 5 m

Illuminance (Wide Lens): 197 lux @ 5 m

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 30 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4

Built-in Automated Programs: Yes

Construction / Physical

Dimensions: Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)

Weight: 12.2 lb (5.6 kg)

Exterior Color: Black

Housing Material: Aluminum die-cast

Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

Connections

Power Connection: Edison (Local) plug to Neutrik powerCON

Power Input: Neutrik powerCON

Power Output: Neutrik powerCON

Data Connectors: 3- and 5-pin XLR

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM

DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16 or HSV

Modes/Personalities: 9 personalities (1, 3, 5, 7, 10, 12, 13, 16, HSV)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 7 units @ 100 V; 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V; 18 units @ 240 V

Power and Current: 167 W, 1.740 A @ 100 V, 60 Hz

Power and Current: 164 W, 1.413 A @ 120 V, 60 Hz

Power and Current: 158 W, 0.813 A @ 208 V, 60 Hz

Power and Current: 156 W, 0.747 A @ 230 V, 50 Hz

Power and Current: 155 W, 0.716 A @ 240 V, 50 Hz

Certifications / Qualifications

CE, MET, FCC

IP Rating: IP20, dry location

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included

Ovation P-56FC

Neutrik powerCON power cord

Gel frame holder (7.5 in/191 mm accessories)

Medium and Wide Lens

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN

Neutrik powerCON cables

3-pin or 5-pin DMX Cables

Color Blending Filters: DF60X1D, DF20D

Ovation F 7.5” Barndoor V2

Ovation 60 deg, 7.5” Honeycomb
