Chauvet Pro Ovation H-265WW Led House Light – Black Supply

Description

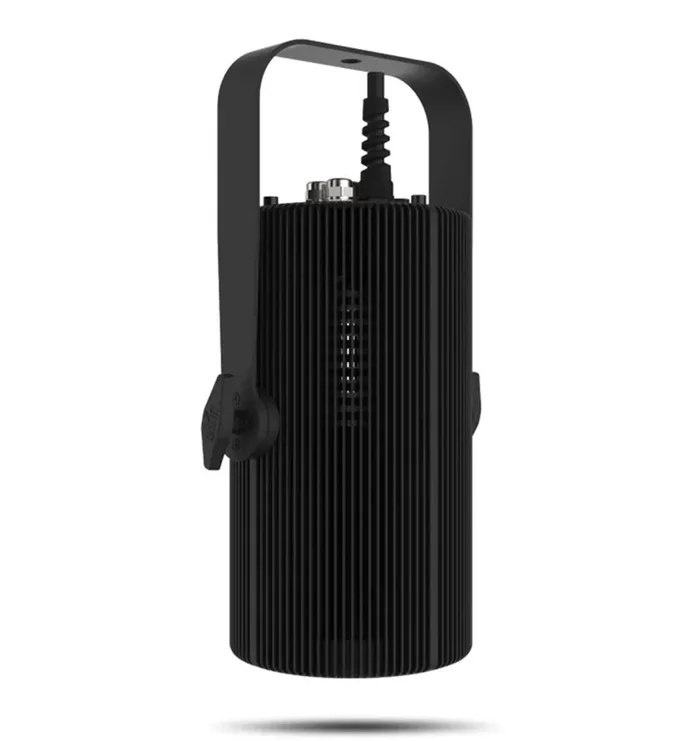

Chauvet Pro Ovation H-265WW Led House Light – Black

The Chauvet Pro Ovation H-265WW Led House Light – Black is a silent, convection cooled LED houselight with a powerful warm white light output and a high CRI, ideal for theatres, worship venues and recital halls or any other application where silent operation is crucial. The unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. Interchangeable lenses for height adjustment are another indispensable feature in theatrical and house of worship applications. For even more versatility, the yoke can be completely removed, and the fixture suspended, pendant style, from a loop on the back plate. White housing not available in European Markets.

Product Specifications:

Optical

Light Source: 1 LEDs (WW) 230 W, (2.3 A), 3258 K, 50,000 hours life expectancy

Color Temperature (at full): 3258 K

CRI: 97

Beam Angle (w/80° filter): 40°

Beam Angle (w/65°): 50°

Beam Angle (w/45° lens): 39°

Beam Angle (w/25° lens): 19°

Beam Angle (w/80° filter): 40°

Field Angle (w/80° filter): 132.9°

Field Angle (w/45° lens): 69°

Field Angle (w/25° lens): 36°

Lumens (w/80° filter): 7,912

Lumens (w/65° lens): 8,505

Lumens (w/45° lens): 8,885

Lumens (w/25° lens): 9,139

Illuminance (w/80° filter): 325 lux @ 5 m

Illuminance (w/65°): 400 lux @ 5 m

Illuminance (w/45° lens): 623 lux @ 5 m

Illuminance (w/25° lens): 1,933 lux @ 5 m

Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 25 kHz

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 30 Hz

Dim Modes: 4

Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 13.11 x 9.44 x 13.34 in (333 x 240 x 339 mm)

Weight: 17.8 lb (8.1 kg)

Connections

Power Connection: Bare-wired

Power Input: Hard-wired

Data Connectors: 5-pin XLR, Phoenix connector

Cable Length (power): 15 ft (4.5 m)

Control

Control Protocol: DMX, W-DMX, RDM

DMX Channels: 1, 2, 3 or 6

Modes/Personalities: 4 personalities (1CH, 2CH, 3CH, 6CH)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 149 W, 1.314 A @ 120 V, 60 Hz

Power and Current: 141 W, .738 A @ 208 V, 60 Hz

Power and Current: 140 W, .691 A @ 230 V, 50 Hz

Breaker Size: T3.15 A, 250 V

Certifications / Qualifications

CE, MET, FCC

IP Rating: IP20, dry location

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included

Ovation H-265WW

65°, 45° and 25° Lenses

80° Filter

Egg Crate

Optional Accessories

W-DMX Transmitter

Professional Clamps: CTC-50HC, CTC-50HCN

5-pin DMX Cables

RDM2go
