Description

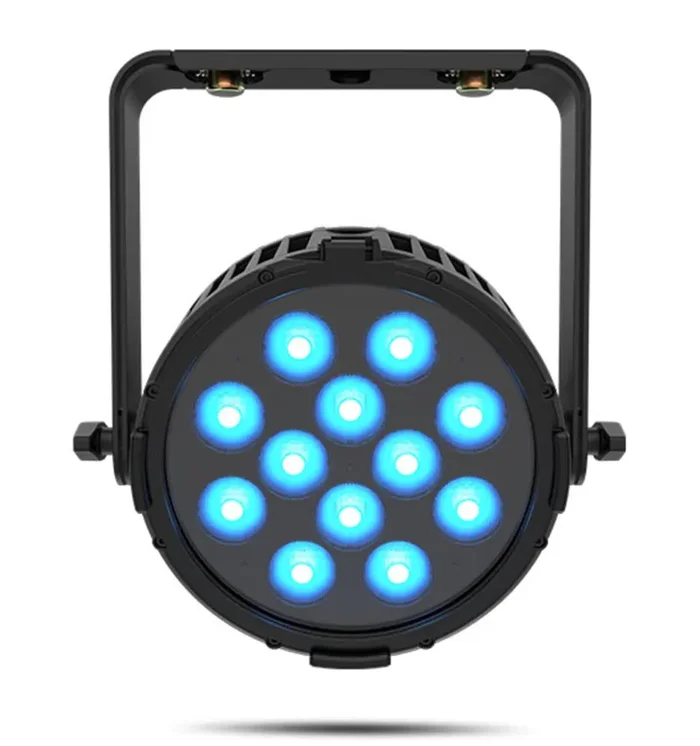

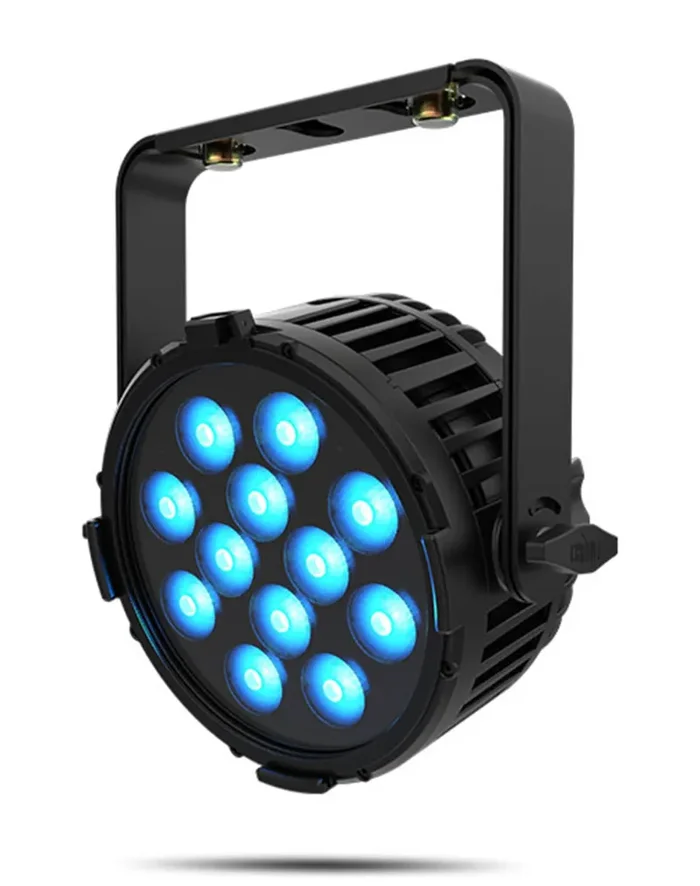

Chauvet Pro COLORdash PAR H12X IP Led Wash Light – Black
The Chauvet Pro COLORdash PAR H12X IP Led Wash Light – Black delivers a broad palette of subtle to saturated color with beautiful precision, weighing in under 12 lbs while delivering over 4,500 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H12X IP offers convenient operation and excellent performance as an IP65-rated all-weather die-cast workhorse at home in any environment, in the rig or on the floor, live or on camera, indoor or out.
Product Specifications:
Optical
Light Source: 12 LEDs (hex-color RGBAW+UV) 120 W, (512 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10,000 K
Color Temperature (at full): 11,008 K
Beam Angle: 22.2°
Field Angle: 36.9°
Lumens: 4,532
Illuminance (total): 1,052 lux @ 5 m
Selectable PWM: 600, 1.2k, 2k, 4k, 6k, 25k Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions: 9.1 x 12 x 9.8 in (232 x 305.4 x 247.9 mm)
Weight: 11.8 lbs (5.4 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size: 8.75 in (222 mm)
Connections
Power Connection: Edison (Local) plug to Seetronic Powercon IP65
Power Output: Seetronic Powercon IP65
Data Connectors: 3 and 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 6ch ,8ch ,9ch ,13ch, or 14ch
Modes/Personalities: 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 V
Power and Current: 126 W, 1.041 A @ 120 V, 60 Hz
Power and Current: 123 W, 0.604 A @ 208 V, 60 Hz
Power and Current: 123 W, 0.547 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC, UKCA
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What’s Included
Colordash Par H12XIP
Seetronic powercon IP65 power cord
Gel frame holder (8.75 in/222 mm accessories)
Omega bracket
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powercon power linking cables
5-pin IP or Non-IP DMX Cables
