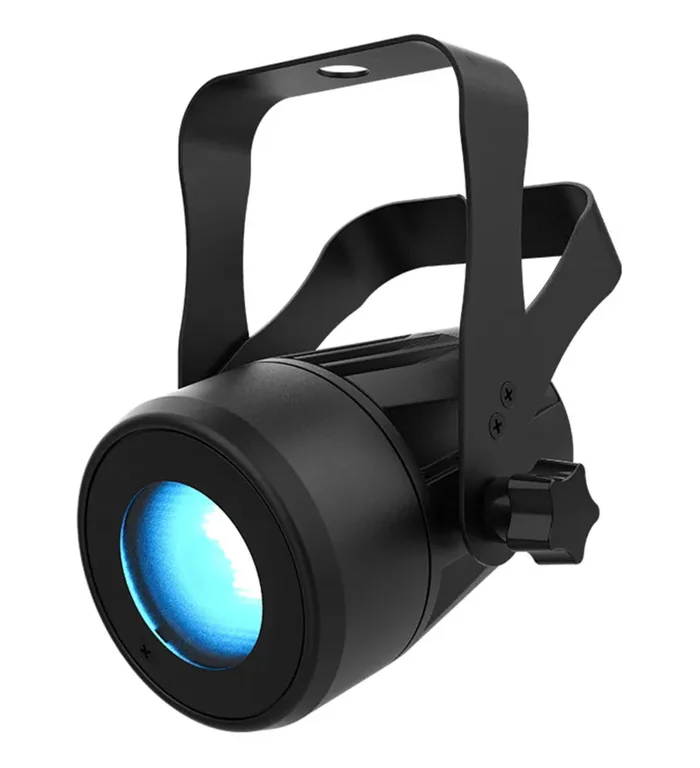

Chauvet Pro COLORdash Accent 3 RGBA LED DMX Fixture

Description

Chauvet Pro COLORdash Accent 3 RGBA LED DMX Fixture

The Chauvet Pro COLORdash Accent 3 RGBA LED DMX Fixture delivers a tremendous punch of evenly mixed light in a tight 9-degree beam, expandable up to 14 degrees without sacrificing any quality of light. Powered by a 20W RGBA LED, this palm-sized fixture excels at delivering saturated colors and brilliant pastels with a soft, even glow. Variable pulse width modulation allows this fixture to be used for any on camera applications without any issue of flicker and an onboard OLED display effortlessly controls and addresses the fixture via DMX or in a stand-alone mode.

Product Specifications:

Optical

Light Source: 1 LED (quad-color RGBA) 20 W, (950 mA), 50,000 hours life expectancy.

Installed Optics: 7°

Beam Angle w/ filter: 14°

Field Angle w/ filter: 27°

Beam Angle w/o filter: 9°

Field Angle w/o filter: 16°

Lumens: w/o filter: 377 lm

Lumens: w/ filter: 393 lm

Illuminance (total) w/ filter: 175 lux @ 5 m

Illuminance (total) w/o filter: 486 lux @ 5 m

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 25 Hz

Standalone Color Mixing: Yes

Dim Modes: 5

Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 163 x 133 x 80 mm

Weight: 2.0 lb (0.9 kg)

Exterior Color: Black

Connections

Power Connection: Edison plug to hard-wired

Power Input: Hard-wired

Data Connectors: 5-pin XLR DMX input and output cable whips

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM

DMX Channels: 4, 7 or 11

Modes/Personalities: 3 personalities (4, 7, 11)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 18 W, 0.141 A @ 120 V, 60 Hz

Power and Current: 21 W, 0.098 A @ 208 V, 60 Hz

Power and Current: 20 W, 0.087 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET

IP Rating: IP20, dry location

What’s Included

COLORdash Accent 3

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN

5-pin DMX Cables
