Description

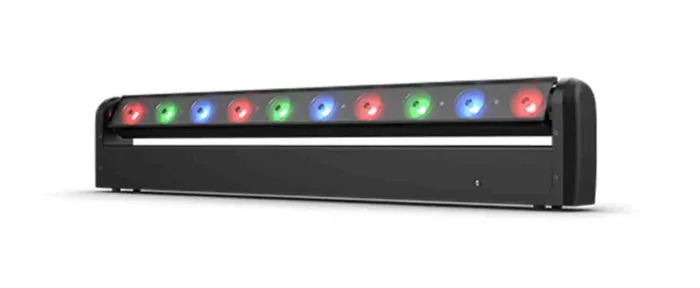

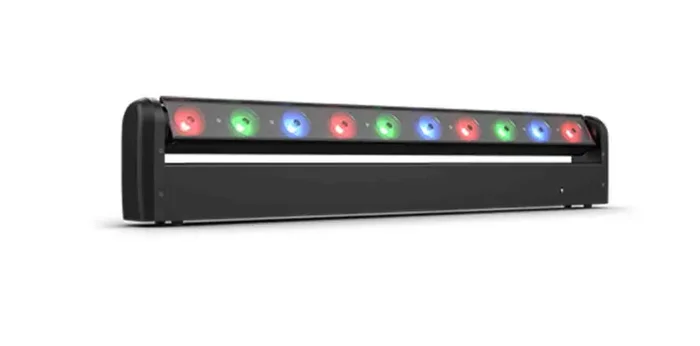

Chauvet DJ COLORband PiX-M ILS Moving LED Wash Light (RGB)
The Chauvet DJ COLORband PiX-M ILS Moving LED Wash Light (RGB) with 10 tri-color (RGB) LEDs, sweeping movement and a staggering array of control options and you get COLORBand Pix M ILS, a fixture that will light up any event and ignite it with energy. This moving strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder or wall-washer. You can also just angle the light where it’s needed using the built-in motors.
But the true excitement comes when you create eye-catching animations and video effects with individual LED control. Controlling this powerhouse couldn’t be easier or more convenient. It has a built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes, ILS compatibility for use in the ILS ecosystem, and D-Fi USB compatibility for wireless master/slave or DMX control. Even DMX connection options are flexible with onboard 3 and 5-pin DMX connectors.
What’s Included
COLORband PiX-M ILS
Power cord
Quick Reference Guide
Product Specifications
| Specification | Measurement |
|---|---|
| DMX Channels | 5, 6, 8, 10, 17, 32, or 36 |
| DMX Connectors | 3- and 5-pin XLR |
| Light Source | 10 LEDs (tri-color RGB) 6 W, (2A) |
| Strobe Rate | 0 to 29 Hz |
| Beam Angle | 15° |
| Field Angle | 27° |
| Illuminance | 7,441 lux @ 2 m |
| Power Linking | 12 units @ 120 V; 20 units @ 230 V |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 86 W, 1.2 A @ 120 V, 60 Hz |
| 84 W, 0.7 A @ 230 V, 50 Hz | |
| Weight | 8.2 lb. (3.7 kg) |
| Size | 31 x 2.6 x 4.8 in (785 x 67 x 123 mm) |
| Approvals | CE, UKCA, ROHS |
| Tilt | 245° |
| Bracket Mounting Hole | 13 mm |
| Optional Controllers | RFC, RFC-XL |
