Blizzard Lighting Motif Sketch IP65 Outdoor Tri-Color LED Wash Fixture – Black

Description

Blizzard Lighting Motif Sketch IP65 Outdoor Tri-Color LED Wash Fixture – Black

The Blizzard Lighting Motif Sketch IP65 Outdoor Tri-Color LED Wash Fixture – Black is suited for architectural lighting applications. The Sketch is powered by seven 3W TRI-color (RGB) LEDs, and it offers a wide pallet of colors from soft and gentle moods to stimulating breathtaking atmospheres.

.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}

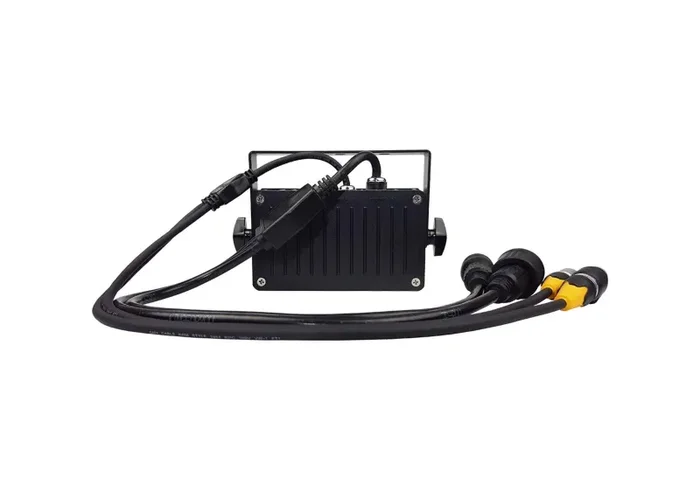

The Motif Sketch can be controlled via the included IR remote control or from a single 3-channel DMX mode. The durable cast aluminum housing and tempered glass lens feature watertight internal gaskets to ensure it will handle the rigors of rugged, rough outdoor environments. The fixture utilizes IP-rated power pigtails and 3-pin DMX XLR connectors. The advanced heatsink is fanless for silent operation.

Product Specifications:

Fixture Type: LED Panel

Light Source: 7x Color LED – 3 W

Expected Lamp Life: 100,000 Hours

Colors: Blue, Green, Red

Photometrics:

25°:

459 fc / 4940 Lux at 3.28′ / 1 m

121 fc / 1300 Lux at 6.56′ / 2 m

Beam Angle: 25°

Shutter / Strobe: Electronic

Dimming: Electronic, 0 to 100%

Performance:

Operating Modes: DMX, Primary/Secondary, Standalone

Macros / Programs: Color Temperature

Effects: Strobe

Gobos: No

Control:

Control Protocols: DMX512

DMX Channel Modes:

1 Mode(s): 3-Channel

Display / Controls: No

Remote Control: IR Remote (with Included Equipment)

Mobile App Compatible: No

Connectivity:

Inputs/Outputs:

1 x XLR 3-Pin DMX Input (on Integrated Cable)

1 x XLR 3-Pin DMX Output (on Integrated Cable)

Wireless: IR

Power:

AC Input Power: 100 to 260 VAC, 50/60 Hz

AC Power Connector:

Input: 1x Proprietary

Output: 1x Proprietary

Power / Current Consumption: 23 W / 0.26 A

Physical:

Environmental Resistance: Dust/Water-Resistant (IP65)

Operating Conditions: Up to 104°F / 40.0°C

Mounting: Mounting Bracket

Included Accessories: No

Exterior Color: Black

Dimensions: 6.29 x 3.54 x 2.78″ / 159.77 x 89.92 x 70.61 mm

Weight: 2.9 lbs. / 1.3 kg
