Description

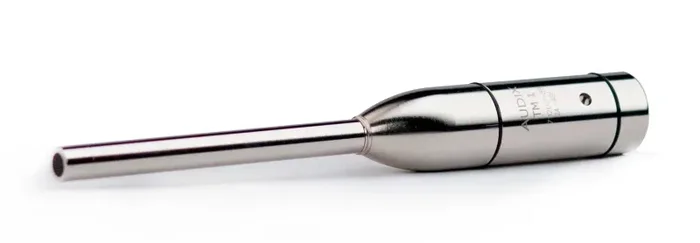

Audix TM1PLUS, TM1 Measurement Microphone Kit
The Audix TM1PLUS, TM1 Measurement Microphone Kit is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use, and affordability.
Equipped with a uniformly controlled omnidirectional polar pattern, the TM1 condenser microphone is designed to capture acoustic measurements for room analysis software programs, real-time analyzers, and other sound control devices. With a flat frequency range of 20 Hz – 20 kHz, the TM1 is an excellent tool for sound engineers, sound companies, and recording enthusiasts. The TM1 omnidirectional test and measurement microphone is designed, machined, assembled, and tested by Audix in the USA.
Product Specifications:
Transducer Type: Pre-polarized Condenser
Frequency Response: 20 Hz – 20 kHz +/-2 dB
Polar Pattern: Omni
Output Impedance: 200 ohms
Sensitivity: 6 mV / Pa @ 1k
Equivalent Noise Level: 28 dB (A weighted)
Signal to Noise Ratio: 66 dB
Maximum SPL: 130 dB with distortion <1% 140 dB Max
Power Requirements: 24 – 48 V Phantom
Power Consumption: 8.9 mA @ 48 Volts
Connector: Switchraft or Audix male XLR
Materials / Finish: 4-piece precision machined brass / Nickel Finish
Weight: 132 g / 4.7 oz
Shipping Weight: 1 lbs
Shipping Dimension: 8.9 x 4.35 x 2.7″
