Audix AP41HT7BGB, Bodypack Wireless System with HT7 headworn Microphone (Beige, 554 to 586 MHz)

Description

Audix AP41HT7BGB, Bodypack Wireless System with HT7 headworn Microphone (Beige, 554 to 586 MHz)

The Audix AP41HT7BGB is a Bodypack Wireless System with HT7 headworn Microphone in Beige, 554 to 586 MHz. A professional diversity wireless system featuring the HT7 single ear miniaturized head-worn condenser microphone. The HT7 is a professional single-ear head-worn condenser microphone designed for stage, presentation, and broadcast applications. With a miniaturized element of only 3mm, the HT7 is the smallest microphone in the Audix lineup. The omnidirectional HT7 features a comfortable earpiece that can be worn around the left or right ear and a durable adjustable length boom arm.

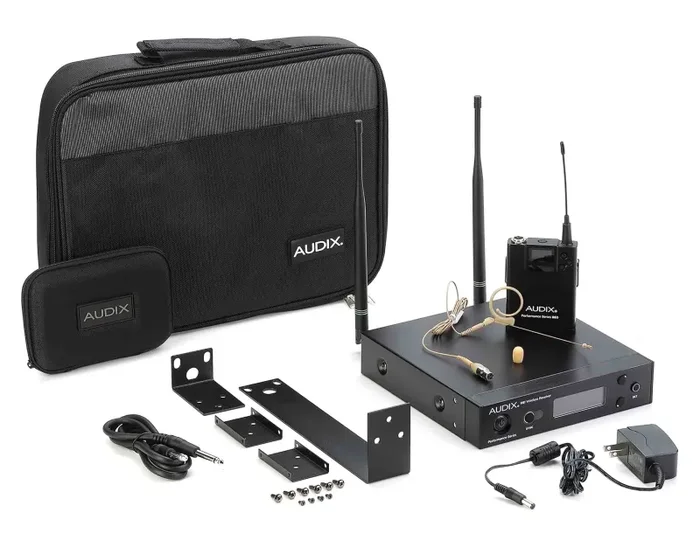

Includes:

1x R41 32 MHz Diversity Receiver

1x B60 Bodypack Transmitter

1x HT7 Headworn Microphone

2x Antennas

1x Audio Cable

2x AA Batteries

1x Carrying Case

1x Power Supply

1x User Guide

1x Rackmount Hardware

Product Specifications:

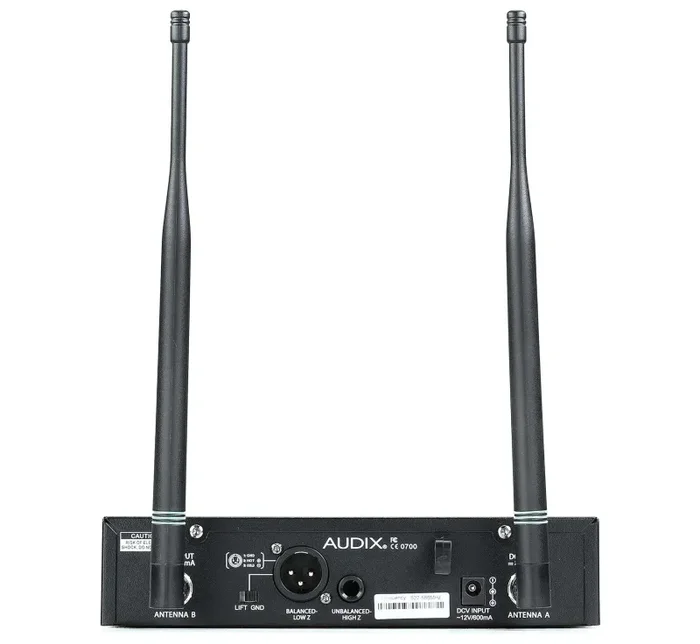

Receiver

Frequency Band: 554 to 586 MHz

Bandwidth: 32 MHz

#Of Simultaneous Systems: Up to 16

Switchable Frequencies: 106 pre-coordinated frequencies

Wireless Range: Up to 300′ / 91 m

Antenna Connector: 2 x BNC (8 VDC, 150 mA)

Outputs:

1 x XLR 3-pin balanced

1 x 1/4″ TS unbalanced

Audio Output Level:

XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain

1/4″: -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain

Audio Level Control: -12 to +9 dB in 3 dB steps

Frequency Response: 45 Hz to 18 kHz

Transmitter

RF Power Output: 10/30 mW

Bandwidth: 64 MHz

Gain Adjustment: 0 dB, -6 dB, -12 dB, -24 dB

Inputs: 1 x mini-XLR 3-pin

Input Impedance:

Mic: 10 kOhms

Line: 1 MOhm

Maximum SPL: Approximately 128 to 140 dB (depending on microphone)

Battery Life: Approximately 14 hours

Current Consumption: 110 mA typical

HT7 Microphone

Product Type: Microphone

Height: 1.6 in

Weight: 0.25 oz

Color: Beige

Body Material: Alloy steel
