ADJ 12PX HEX, Versatile LED Par Fixture with 12 x 12-Watt, 6-IN-1 (RGBAW+UV) HEX LEDs

Description

ADJ 12PX HEX, Versatile LED Par Fixture with 12 x 12-Watt, 6-IN-1 (RGBAW+UV) HEX LEDs

The ADJ 12PX HEX is a versatile LED Par fixture with 12 x 12-Watt, 6-IN-1 HEX LEDs and is made from all metal construction. With a 25-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for up lighting a venue, or used as a stage wash.

12PX HEX professional features include: locking power In/Out connections to daisy chain power, 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Users may choice 3-pin or 5-pin DMX connectors.

The 12PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (Sold Separately). Alternatively, the fixture may be operated via a DMX controller or the unit’s built-in programs.

.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}

.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}

Product Specifications:

Optical:

Light Source: 12 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)

LED life rated at approximately 50,000 hrs.

Beam angle: 25-degree

Control:

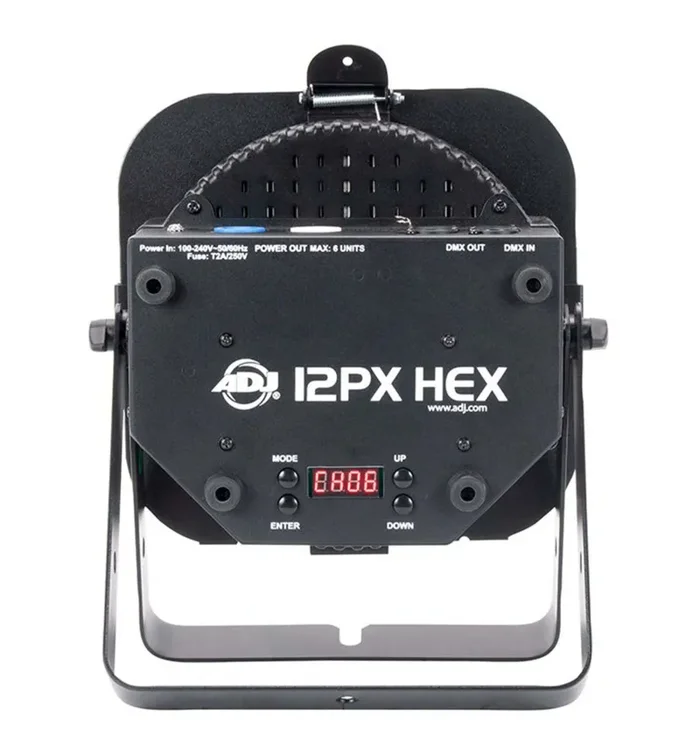

4-button, DMX digital display on rear panel

Compatible with Dotz Par RF wireless remote control (sold separately)

7 Built-In Programs

63 built-in Color Macros

4 DMX Modes: 6, 7, 8, & 12 channel

5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled, RDM (Remote Device Management)

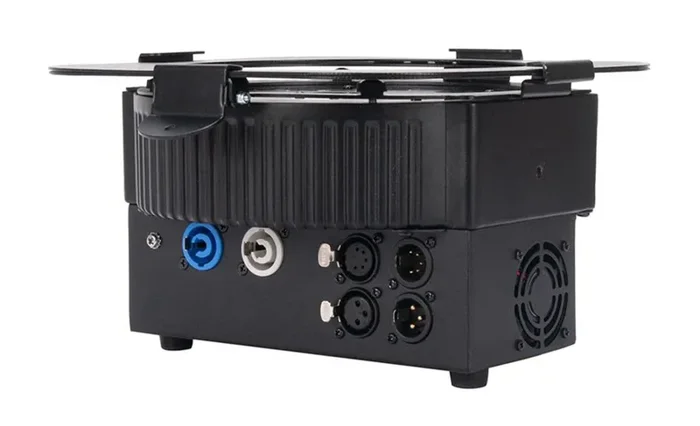

Connections:

Data linkable via 3-pin or 5-pin DMX connections

Daisy chain power from locking power In/Out connections

With Wired Digital Communication Network

Electrical:

Multi-voltage operation: AC 100-240V, 50/60Hz (powerCON power In/Out)

Dimensions (LxWxH): 5.34” x 9.8” x 11.7”/ 136 x 249 x 297.5mm

Weight: 8.7 lbs. / 4 kg.

What’s In the Box:

Power cable

Scissor yoke

Gel frame to use with diffusion filters (Diffusion filters sold separately)

Approvals:

cETLus Approved (Control #4010765)

CE Approved
